EV1020 Series

10K Standard Inground Lift

Challenger’s electric hydraulic cassette-style 10,000 lb. capacity inground lift meets the demands of professional service facilities. With a smaller footprint, your shop can maximize service bays. The EV1020 has 3-stage front and rear arms or a fixed drive-on pad. We added Quick Cycle™ models that can rise in just 27 seconds and lower in only 17 seconds. Expand your service potential with our most versatile, easy-to-operate inground lift.

ALI/ETL certified.

  • 10,000 lb. lift capacity
  • 3-stage front and 3-stage rear arms provide access to the lift points of a wide range of cars and trucks, maximizing revenue potential
  • Also available with a drive-on style pad (XP9) to aid in quick vehicle spotting for express bays
  • 8 1/2” diameter chrome pistons provide greater stability under load
  • Chrome non-breathing ram style cylinder provides for longer lift life
  • Enhanced raised wiper at top and bottom of bearing provides better grease retention and minimizes contaminates from entering into bearings
  • Long bearing contact provides increased stability
  • Mechanical lock engages every 3″ allowing ergonomic working height for technicians to increase productivity and minimize fatigue
  • Stainless steel air lock release cylinder promotes longer working life with its corrosion resistant design
  • Fully-contained and sealed recycled polymer cassette tub eliminates risk of hydraulic fluid seeping into the ground
  • Premium double telescoping screw pads adjust to multiple heights minimizing the need for adapters
  • 87″ drive-thru accommodates wider vehicles, minimizes tire damage and provides for easy drive-on
  • Quick Cycle™ models reduce vehicle travel time by 30 percent
  • Wide range of upgrades to further customize your fleet
  • Premium powder coat finish on bolsters and arms provides long-lasting durability

Model NumberEV1020EV1020-QCEV1020XP9EV1020XP9-QC
Lifting Capacity10,000 lbs.10,000 lbs.9,000 lbs.9,000 lbs.
Arms3-stage front/3-stage rear3-stage front/3-stage rearn/an/a
Stroke68”68”68”68”
Rise Height74”74”70”70”
Width Overall97"97"79.75”79.75”
Drive-Thru Clearance87”87”--
Reach (Arm Minimum)19.625”19.625”--
Reach (Arm Maximum)42.125”42.125”--
Screw Pad Height3.875” - 6”3.875” - 6”Minimum Pad Height: 2.25"Minimum Pad Height: 2.25"
Capacity2,500 lbs. per arm2,500 lbs. per arm4,500 lb. per pad4,500 lb. per pad
Guide Plunger Diam.8.5”8.5”8.5”8.5"
Motor / Voltage2HP, 208v-230v, 60Hz, 1Ph2HP, 208v-230v, 60Hz, 1Ph2HP, 208v-230v, 60Hz, 1Ph2HP, 208v-230v, 60Hz, 1Ph
Speed of Rise38 s27 s38 s27 s
Air Required90 - 120 psi90 - 120 psi90 - 120 psi90 - 120 psi
ALI/ETL CertifiedYesYesYesYes
Super Structure ColorsRed, Blue, BlackRed, Blue, BlackBlackBlack

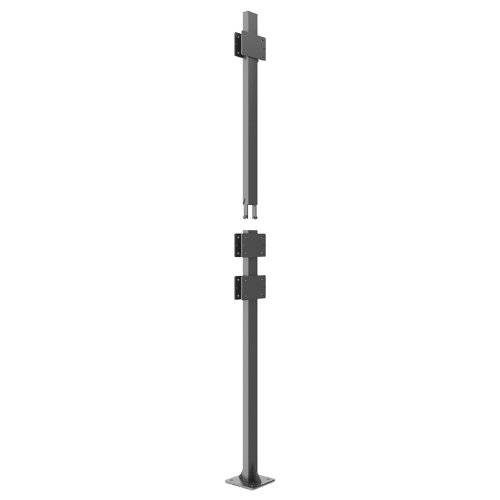

Optional Accessories and Upgrades
