4030 Series

30K Heavy-Duty 4-Post Lift / Alignment

Challenger engineered our 30,000 lb. capacity 4-post 4030 series lift with safety and durability in mind. We also integrated our time-proven cable-driven lift system with heavy-duty steel sheaves and cables for optimal performance. A single-point air actuated lock release makes these lifts simple to use. Choose between general service or alignment deck models as well as three lengths to fit your shop’s needs. We also offer a range of optional accessories.

ALI/ETL certified.

  • 30,000 lb. lift capacity
  • Closed front design with 244.5″, 281″, or 317” max wheelbase
  • 71.75” rise height provides maximum head room for working underneath vehicles
  • Multiple locking positions for a variety of alignment and general service tasks
  • Compatible with the industry’s latest camera imaging alignment systems
  • Adjustable lock ladders allow for a versatile install with sensitivity to uneven floors
  • Recessed turn plate pockets for easy drive-on (Alignment models only)
  • Single-point air actuated lock release disengages column locks simultaneously
  • Durable diamond-plate approach ramps for positive vehicle traction

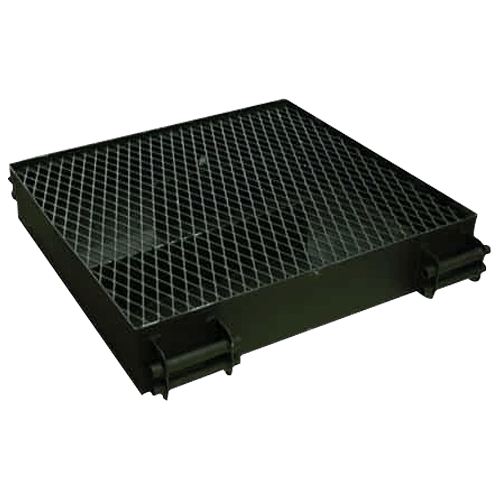

  • Built-in runway rail system provides versatility to add convenience options
    like rolling jacks and oil drain pan (sold separately)

Model Number4030SFX4030EFX4030XFX4030SAX4030EAX4030XAX
Lifting Capacity30,000 lbs.30,000 lbs.30,000 lbs.30,000 lbs.30,000 lbs.30,000 lbs.
Max. Wheelbase 1244.5”281”317”244.5”281”317”
Rise Height71.75”71.75”71.75”71.75”71.75”71.75”
Overall Length308”344”380”308”344”380”
Overall Width172.75”172.75”172.75”172.75”172.75”172.75”
Inside Columns152”152”152”152”152”152”
Between Columns246.125”282.625”318.625”246.125”282.625”318.625”
Height of Columns92.25”92.25”92.25”92.25”92.25”92.25”
Height of Runways8.5”8.5”8.5”8.5”8.5”8.5”
Width of Runways24”24”24”24”24”24”
Width Between Runways46” - 52”46” - 52”46” - 52”46” - 52”46” - 52”46” - 52”
Air Supply Required90 - 120 psi90 - 120 psi90 - 120 psi90 - 120 psi90 - 120 psi90 - 120 psi
Motor / Voltage (Single Phase Std)3HP, 208v - 230v3HP, 208v - 230v3HP, 208v - 230v3HP, 208v - 230v3HP, 208v - 230v3HP, 208v - 230v
Speed of RiseTBDTBDTBDTBDTBDTBD
Max 2 Wheel Alignment---219.5”256”292”
Min Recomm. Bay Size28’ x 17’31’ x 17’34’ x 17’28’ x 17’31’ x 17’34’ x 17’
ALI/ETL CertifiedYesYesYesYesYesYes
Colors AvailableBlackBlackBlackBlackBlackBlack

Optional Accessories and Upgrades
